Product photography across the EMS Technologies ESD packing range: bags, bins, foam inserts, thermoformed trays and the materials they are made from.

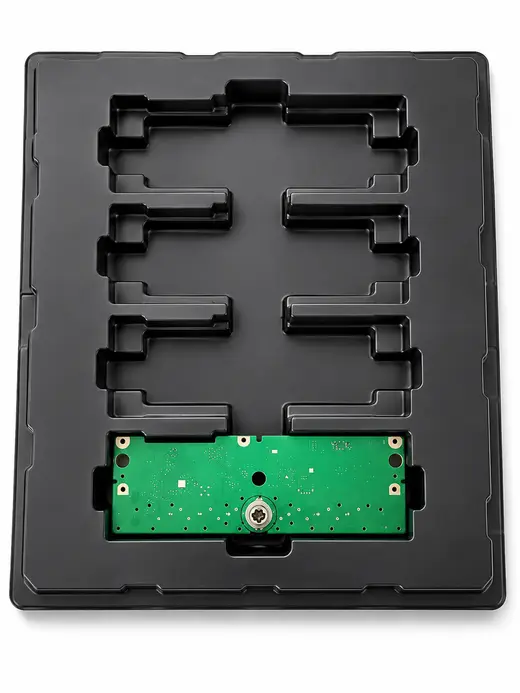

Black thermoformed trays

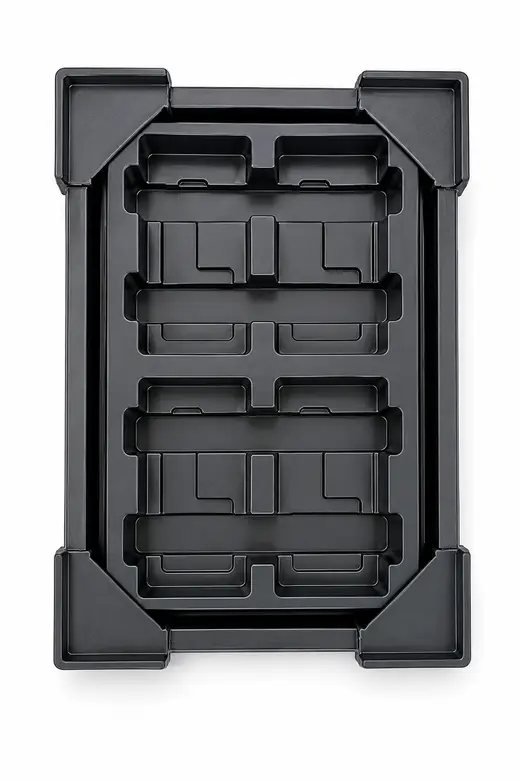

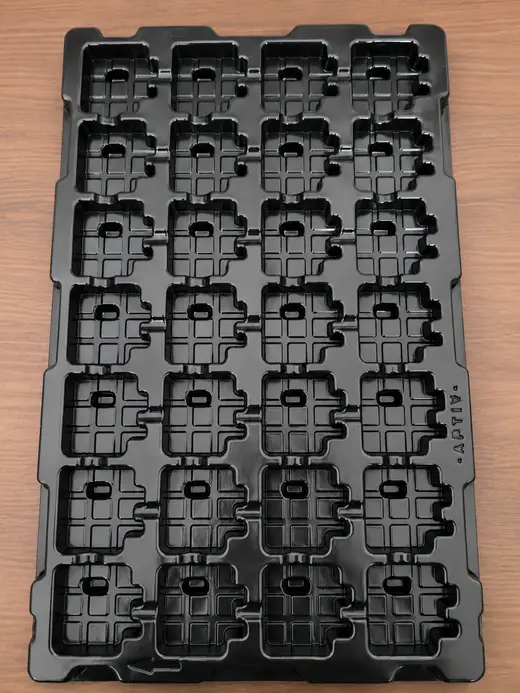

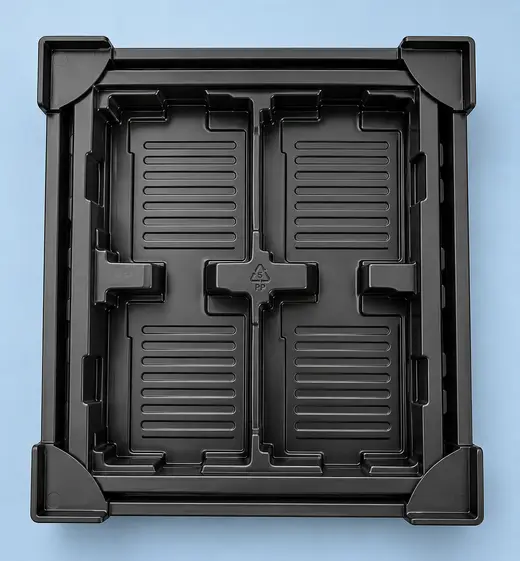

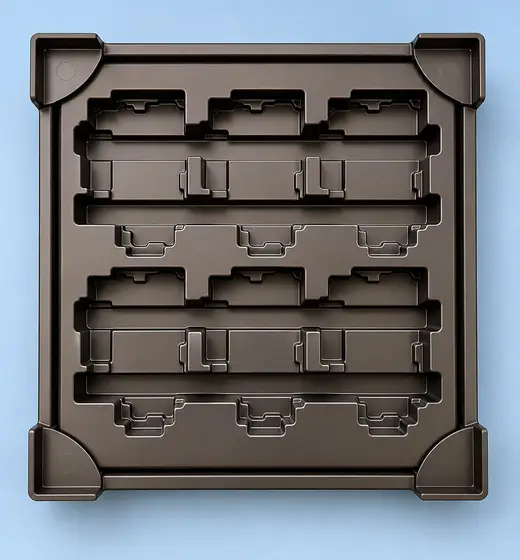

Black conductive thermoformed trays, pockets tooled to the component and part numbers moulded into the rim.
Click any photo to view it larger with the full product details, or Enquire to request a quote.
Product
Black thermoformed trays
Black HIPS is the rugged, reusable grade of thermoformed tray. Supplied in conductive and anti-static formulations, the material carries charge away rather than holding it, and the heavier sheet takes daily handling on a production floor for years rather than a single trip. Trays are formed with slots, channels or pockets to suit whether you are carrying boards on edge or components lying flat.
- Conductive and anti-static grades for continuous charge dissipation
- Heavier sheet built for years of repeated line-side handling
- Slots, channels or pockets formed to your board or component
- Stacks loaded and nests empty to save storage space
White thermoformed trays
White thermoformed trays, where a light background makes the part and its orientation easier to check.
Click any photo to view it larger with the full product details, or Enquire to request a quote.
Product
White thermoformed trays
White thermoformed trays are the opaque counterpart to the clear PET range, used where a light background makes a part easier to see and inspect than a black tray does, and where the tray itself needs to carry a moulded part number. The pockets are tooled to the component outline so each part is located rather than loose, and the trays nest empty and stack loaded, which is what makes them practical for line feeding and for shipping in volume.
- Pockets tooled to the component outline, so parts cannot shift
- Light background makes parts and their orientation easy to check
- Part numbers embossed into the tray rim for identification
- Nests empty for return, stacks loaded for transport

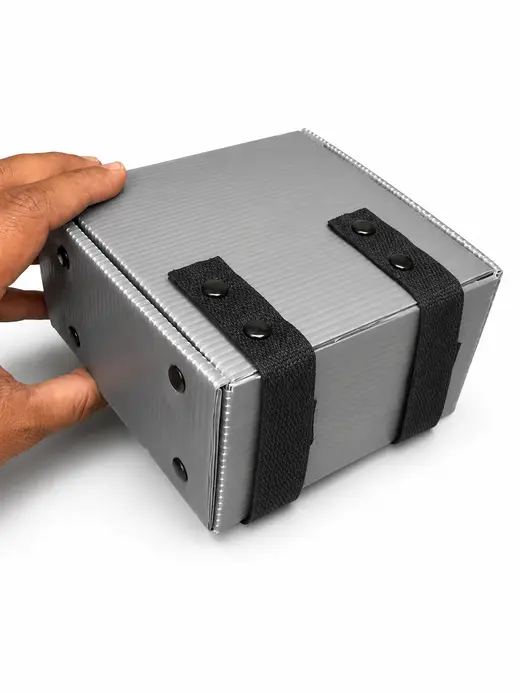

PP corrugated bins and boxes
PP corrugated bins, boxes and trays with twin-wall dividers, riveted corners and carry slots.
Click any photo to view it larger with the full product details, or Enquire to request a quote.
Product
PP corrugated bins and boxes
PP corrugated trays and bins are made from twin-wall polypropylene sheet, giving a rigid but lightweight container that stands up to repeated handling far better than card. The material is anti-static, so boards are not resting against a surface that can hold a charge, and each unit carries the electrostatic-sensitive-device marking so the floor knows what is inside before it is opened.
- Twin-wall PP sheet: rigid, light and far more durable than card
- Anti-static material with ESD marking on every unit
- Dividers, partitions and foam inserts to hold parts apart
- Footprint, wall height and layout matched to your components
Conductive foam boxes and inserts

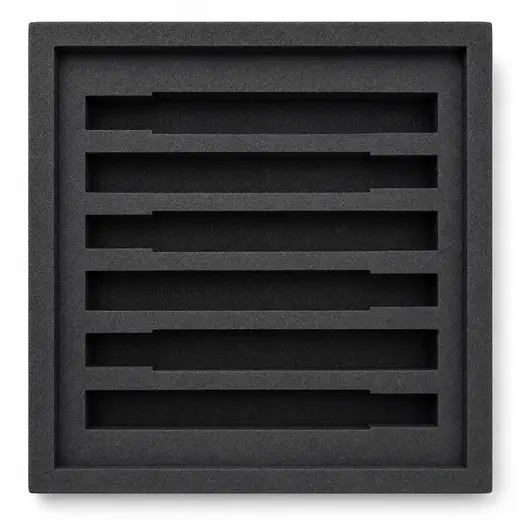

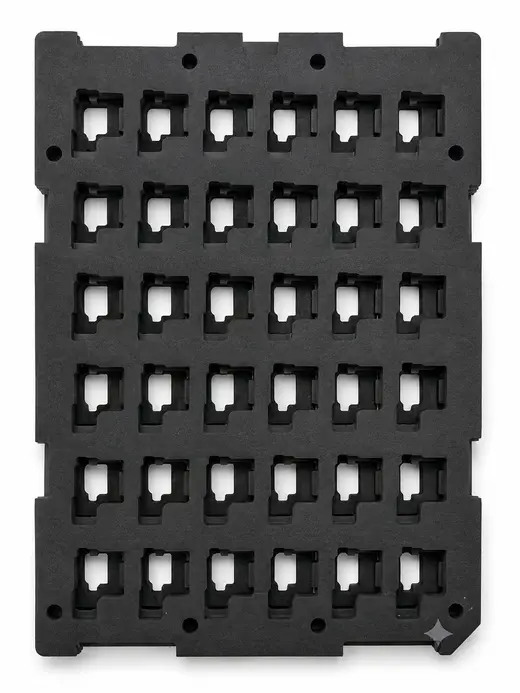

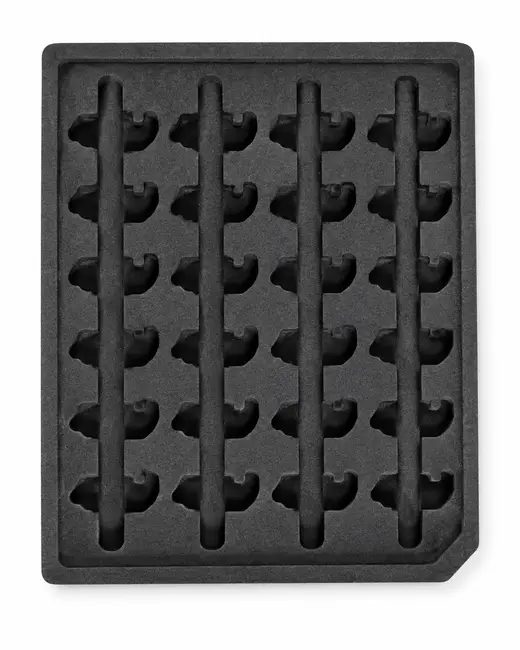

Conductive foam boxes and inserts routed to hold each part in its own pocket.
Click any photo to view it larger with the full product details, or Enquire to request a quote.
Product
Conductive foam boxes and inserts
Conductive foam is cut and routed to the part rather than formed over a tool, which suits low and medium volumes and anything with an awkward outline. The foam takes up shock and vibration while conducting a charge away instead of holding it on the surface, so components with exposed pins or fragile connectors are cushioned and grounded at the same time. It is supplied as loose inserts to drop into a bin, or as a lined box that is the complete pack on its own.
- Pockets routed to a drawing, so each part sits located and separated
- Cushions against shock and vibration while dissipating charge
- Supplied as inserts for a bin, or as a complete lined box
- Practical at low and medium volumes with no tooling to pay for
EPE foam trays
EPE foam trays cut to component geometry for cushioned, static-safe handling.
Click any photo to view it larger with the full product details, or Enquire to request a quote.
Product
EPE foam trays
EPE foam trays and inserts are cut to the geometry of the component they carry, so each part sits in its own pocket instead of shifting against its neighbours. The foam absorbs shock and vibration in transit while dissipating static continuously, which matters for parts with exposed pins or connectors that bend easily and are sensitive to discharge.
- Pockets routed to a drawing, so each part is located and held
- Cushions against shock and vibration while dissipating static
- Same tray works for handling, storage and operator presentation
- Pocket layout, depth and footprint all worked to suit your part
Custom-formed ESD packing
Shaped presentation packs, PP honeycomb pallet tops and conductive reels, all made to a drawing.
Click any photo to view it larger with the full product details, or Enquire to request a quote.
Product
Custom-formed ESD packing
Work that does not fit a standard tray or bin: packs cut to a shape the customer has asked for, pallet tops that replace timber, and conductive reels for tape-and-reel components. All of it starts the same way — from your drawing or a sample — and is made in the same conductive and anti-static materials as the rest of the range, so a presentation pack protects the contents as seriously as a production tray does.

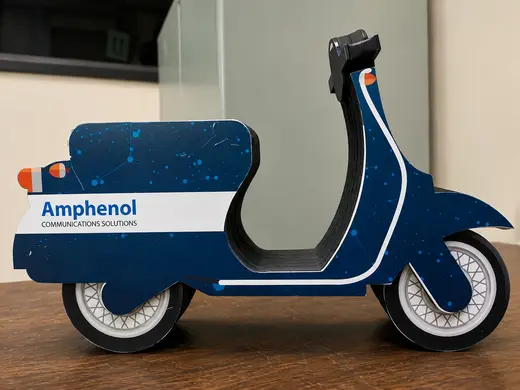

- Shaped and branded presentation packs cut from conductive foam

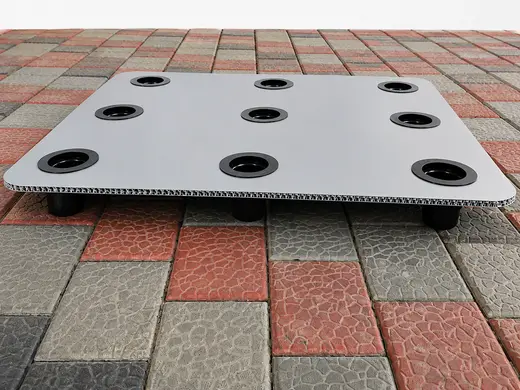

- PP honeycomb pallet tops on moulded feet, in place of timber pallets

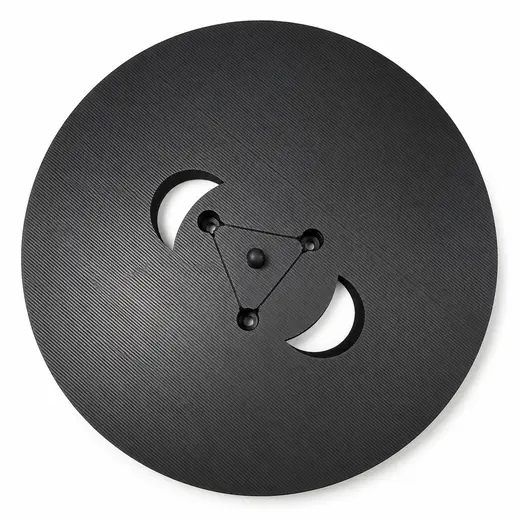

- Conductive thermoformed reels for tape-and-reel component packing
- Made from your drawing or a sample, in the material the job needs
