Selective Coating Machines
Selective Coating Machines
Professional manufacturing of equipments, offering complete automation, reliability, quality & efficiency in enhancing quality of your end product

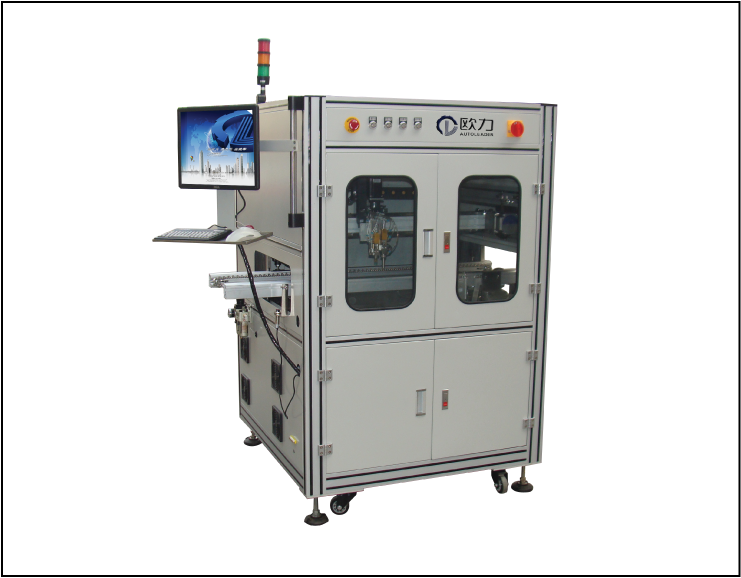

Features
1. The whole frame is welded by sheet metal. So it has beautiful shape and stable operation.
2. Controlled by the industrial computer with the more convenient and more humanized WINDOWSXP operating system.
3. Either the on-line programming or off –line programming is available.
4. The function of auto accuracy calibration guarantees its perfect running precision.
5. Use the imported pneumatic components to control.
6. With the precise pressure regulating valve on the atomization adjustments, it can control the atomized airflow balanced then improve the edge definition.
7. With the unique installing method of the electric eye, it can avoid the wrong actions effectively and extend its service life.
8. With the function of auto-collecting the exhausted emissions, it protects the working environment better.
9. With the function of low pressure protect, it prevents the damages of the machine and parts caused by the low pressure effectively.
10. Equipped with connection port of auto-connect with on-line signal.
11. Pneumatic filter with the function of automatic drainage.
12. Be safer with the function of low pressure alarm.
13. The device comes with function of the UV inspection.
14. It can paint precisely on the single board.

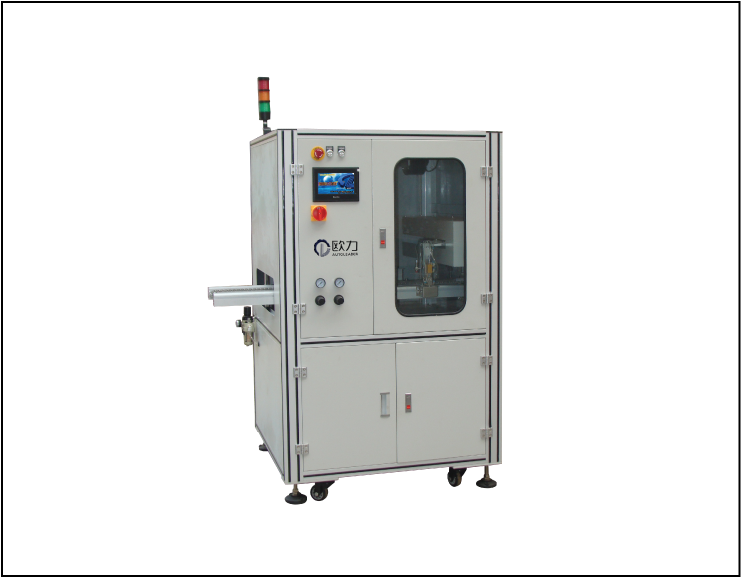

Features
1. We use the high-grade aluminum for the frame. So it has beautiful shape and be easy to maintain.
2. With controlled by PLC controller, it’s more simple to operate.
3. The function of auto accuracy calibration guarantees its perfect precision.
4. Inspecting the PCB width intelligently, it has the function of compensating the PCB width in four directions: front, rear, left and right.
5. With the precise pressure regulating valve on the atomization adjustments, it can control the atomized airflow balanced then improve the edge definition.
6. With the adjustable conveying speed. It can fits all kinds of large or small PCB sizes and gets the best painting effects.
7. With the function of auto-collecting the exhausted emissions, it protects the working environment better.
8. With the function of low pressure protect, it prevents the damage of the machine and parts caused by the low pressure effectively.
9. Pneumatic filter with the function of automatic drainage.
10. Be safer with the function of low pressure alarm.
11. The device comes with function of the UV inspection.
12. Conveying the work-pieces uninterrupted, the speed goes to the fastest. With the single nozzle, it’s more economical and partical
Features
1. The whole frame is welded by sheet metal. So it has beautiful shape and stable operation.
2. Controlled by the industrial computer with the more convenient and more humanized WINDOWSXP operating system.
3. Either the on-line programming or off –line programming is available.
4. The function of auto accuracy calibration guarantees its perfect running precision.
5. Use the imported pneumatic components to control.
6. With the precise pressure regulating valve on the atomization adjustments, it can control the atomized airflow balanced then improve the edge definition.
7. With the unique installing method of the electric eye, it can avoid the wrong actions effectively better.
8. With the function of auto-collecting the exhausted emissions, it protects the working environment better.
9. With the function of low pressure protect, it prevents the damages of the machine and parts caused by the low pressure effectively.
10. Equipped with connection port of auto-connect with on-line signal.
11. Pneumatic filter with the function of automatic drainage.
12. Be safer with the function of low pressure alarm.
13. The device comes with function of the UV inspection.
14. High speed, perfect mute, it can work on jointed boards at the same time with higher efficiency, as well as painting on single board, Meanwhile, it can paint precisely on the single board.

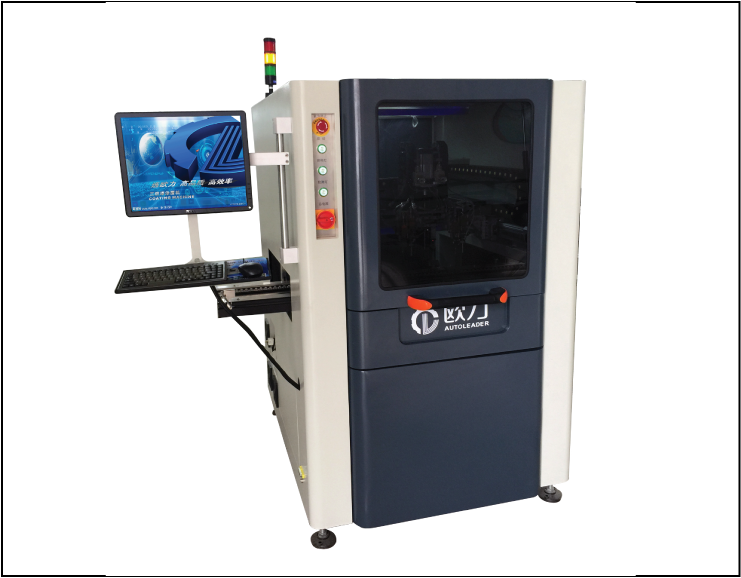

Features
1. The whole frame is welded by sheet metal. So it has beautiful shape and stable operation.
2. Controlled by the industrial computer with the more convenient and more humanized WINDOWSXP operating system.
3. Either the on-line programming or off –line programming is available.
4. The function of auto accuracy calibration guarantees its perfect running precision.
5. Use the imported pneumatic components to control.
6. With the precise pressure regulating valve on the atomization adjustments, it can control the atomized airflow balanced then improve the edge definition.
7. With the unique installing method of the electric eye, it can avoid the wrong actions effectively and extend its service life.
8. With the function of auto-collecting the exhausted emissions, it protects the working environment better.
9. With the function of low pressure protect, it prevents the damages of the machine and parts caused by the low pressure effectively.
10. Equipped with connection port of auto-connect with on-line signal.
11. Pneumatic filter with the function of automatic drainage.
12. Be safer with the function of low pressure alarm.
13. The device comes with function of the UV inspection.
14. The nozzle can be 0-45 degree inclined so that to paint with no dead corner.
15. High speed, perfect mute. It can paint on the single board precisely, as well as inclined painting with no dead corner indeed (It can pain all over the board).
Curing Ovens
Professional manufacturing of equipments, offering complete automation, reliability, quality & efficiency in enhancing quality of your end product

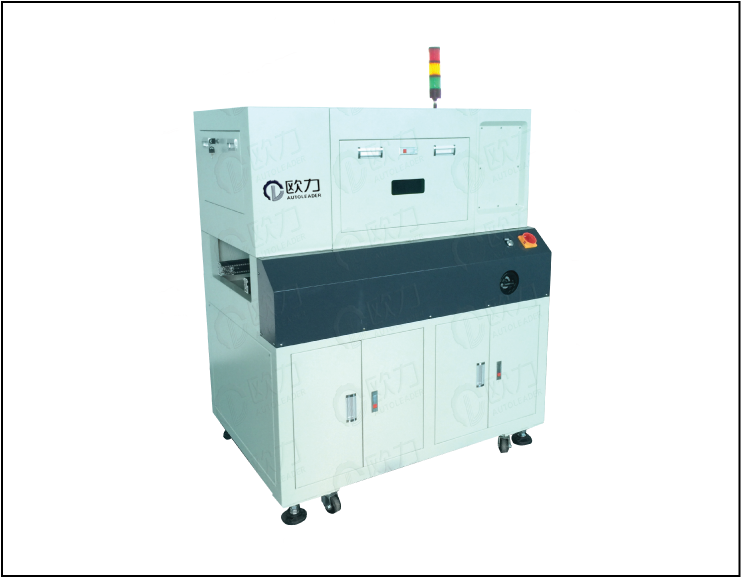

Features
1. The material input and output are required with the lens hood and the adjustable baffle.
2. The whole machine surface is sprayed plastic in high temperature. It’s corrosion resistant and easy to clean.
3. Adopt the halogen lamp. 3KW each set, there are totally 2-4 sets distributed uniformly in the oven.
4. Be equipped with the transformer, reflector, lamp and trigger. The UV reflector is added. With the reflecting plate on the bottom, it improves the UV light usage rate greatly. Each unit of UV light can be controlled separately and be adjusted upper or lower.
5. The light range can be adjusted wilfully with 3 adjusting switches.
6. With the automatic timer, it can monitor the working time of the lamp and be convenient to replace. Each light unit is equipped with the thermal insulation cold light mirror independently, thus to prevent the heat radiation of infrared ray effectively. So the products would not be affected by the excess temperature.
7. With the aluminum alloy rail which is equipped with the stainless steel chain, its width can be adjustable. The max is 450. The conveyor speed can also be adjusted. According to the different work-piece, it will adjust the best transit time to get the best output performance.
8. It’s equipped with the strong wind centrifugal exhauster in which there is a small draught fan installed. A filter is set in the front and rear air supply system. Furthermore, the doubles shutters air inlets are installed on booth upper sides of the oven corner. All the measures reduce the temperature of the products and the UV furnace and extend the service life of the lamp.
9. Power: 380V, 3 phase and 5 line.

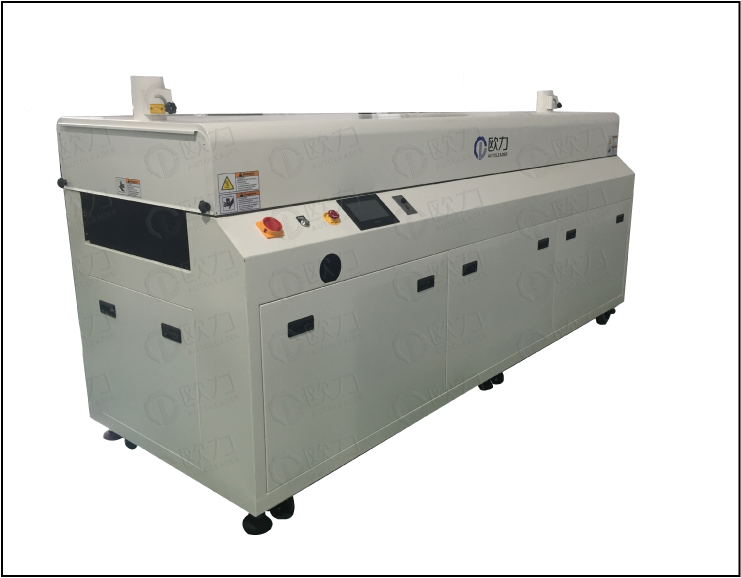

Features
1. A part frame of the body machine is made of hydraulic finish machining steel plate.
2. Use the foot cup with rubber gasket for the fixing auxiliary equipment of the bottom stand to support the machine.
3. The closure plate of the stands made of hydraulic finish machining cold plate which is single clipper wood with white corrugated baking finish.
4. Use the infrared heating tube as heating tube. The total power is 9KW. They are installed uniformly. The equipment is divided into 3 warming areas. The temperature range is 150° C indoor temperature.
5. The automatic conveyor system is moved from le to right. The special aluminum rail is used as conveyor rail which is installed synchronously on both sides. With 1 unit adjusting hand wheel and 2 units of galvanized fixing seats, the guide rail regulator adjusts the rail at 4 points synchronously to be the effectively width 50-450mm.
6. Take the roller conveyor chain with 5mm longer pin as conveyor chain which is installed embedded in the aluminum guide rail. The galvanized synchronous driving wheel is equipped. There is a set of photoelectric switch at the exit end. When the board goes to the machine end, the transportation would stop. With electric adjustable speed motor for driving motor, the rotating speed can be adjustable to be fast or slow. It is easy to operate
