TECHNOLOGY AS ITS CORE
BubbleGuard is manufactured with a circular honeycomb structure at the centre which fortifies BubbleGuard with non-collapsible bubbles. The Air-Lock technology ensures constant cushioning to protect contents from damage throughout storage, handling and transportation, without losing its effectiveness. The high strength-to-weight ratio delivers impressive impact with compressive strength. absolute durability and uItra-low weight. BubbleGuard a highly robust solution tailored to exceed even the most rigorous standards.
THE PROFITABLE SOLUTIONS
Against conventional material like paper & wood, BubbleGuard is made to be reused over multiple cycles lowering the cost and carbon footprint
Its 100% waterproof, UV resistant, Heat resistant and Chemical resistant ensuring protection in all industrial environments. The light-weight structure facilities reduced fright cost for one way and return logistics.
Bubble Guard Pallet
Durable and lightweight pallet
Designed For Efficiency
De-clutter your factory floor and make material movement easier with BubbleGuard Pallet. We offers a unique range of lightweight pallets made with 3000 GSM honeycomb structured BubbleGuard Sheets to make your shop-floors organized and make materials easy to transport.

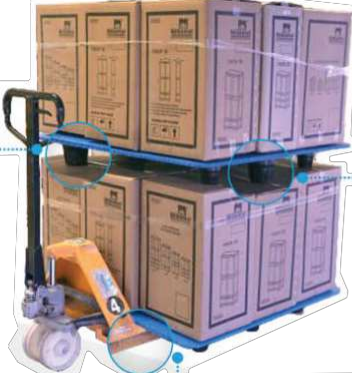

Material lying on the floor in factories, warehouses and workshops is at risk to get soiled and water damage. It is also time and energy consuming to move material manually. The BubbleGuard is compatible with all standard hand pallet trucks and forklifts allowing you to move heavy stacks of up to 800 kg, easily.
ADVANTAGES BY FOOT
BubbleGuard has interlocking removable legs for easy storage and refurbishment providing an extended lifecycle and high return on investment.

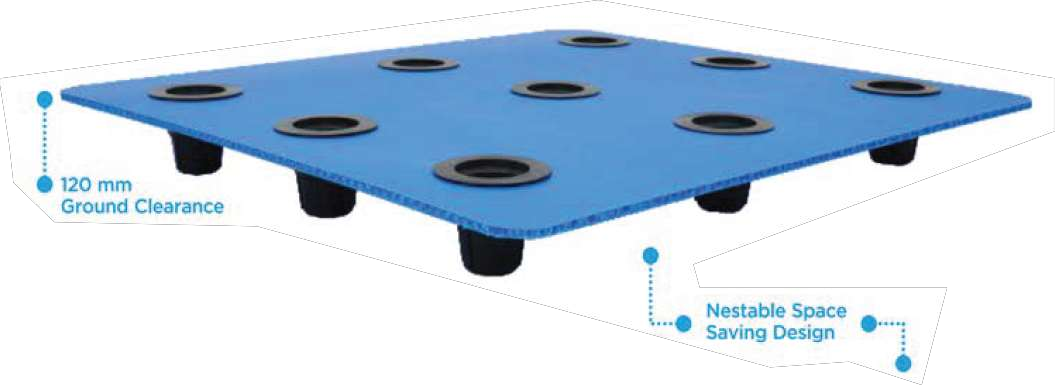

The design provides 120mm ground clearance to factory material keeping them safe from liquid damage and soiling
Advantages
BubbleGuard is available with a wide range of features ensuring a solution designed to meet every requirement
Key Benefits
- High Stiffness & Rigidity
- Reusable Multiple Times
- Can Be Fully Customized
- Lightweight
- High Point Load Bearing Capacity
- Perfectly Flat Surface
- Available As Per Size Required
- Rounded Edges For Safety
- 100% Recyclable
Standard Specifications
| Pallet Dimensions* | Ground Clearance | Loading Capacity** | Fork Lift Access |
|---|---|---|---|
| Customizable | 120mm | 800 KG | From 4 Sides |
*Loading capacity will vary with stacking height.
Mechanical Specifications
| Property | Method | GSM3000 | Units |
|---|---|---|---|
| Breaking Strength | ASTM D 638 | 84.3 | Kgf/15mm |
| Elongation MD Elongation TD |
ASTM D 638 ASTM D 638 |
32.7 42.7 |
% % |
| Puncture Resistance | IS – 4006 – 2 | >1500
457.5 |
Beach units (BU)
Kgf/cm |
| Edge Crush Test | IS – 7063 | >18.2 | kN/m |
