Thick film UV Curing

  • ELPEGUARD® Twin-Cure® DSL 1600 E-FLZ series

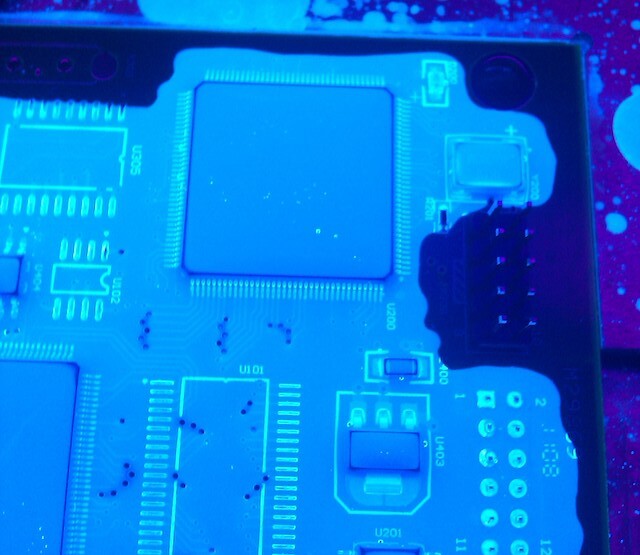

    Solvent-free 1-pack systems with excellent chemical resistance; typical dry layer thickness > 80 μm, thus providing excellent protection even in critical weather conditions; the fluorescent adjustment permits an easy and reliable check of the coating result under UV light (black light), can be removed mechanically for repair purposes

    • Base: copolymerisate of polyurethane (UR) and polyacrylate (AR)
    • Powerful protection through electrical insulation properties directly after UV curing
    • Chemical crosslinking in shadow areas
    • Mould resistant per IPC-TM-650, 2.6.1.1
    • Excellent mechanical resistance
    • Recommended auxiliary product: Cleaning agent R 5817
    • Application brushing | spraying | dipping | selective coating methods | dispensing
    • Drying / curing UV curing
    • Operating temperature range - 65 to + 130/145 °C
    • Standards complied with UL 94 | UL 746E | IPC-CC-830B | MIL-I-46058C
    • Fields of Use
